TRI - DISC REFINER |
| |
| |
| |
| APPLICATION |
| GARUDA TRI-DISC REFINERS CAN BE USED TO REFINE |
| 1. WASTE PAPER PULP(LOCAL OR IMPORTED) |
| 2. BAGASSE PULP |
| 3. HARDWOOD PULP |
| 4. SOFT WOOD PULP |
| 5. WHEAT STRAW PULP |
| 6. RICE STRAW PULP |
|
 |
|
| |
| |
| |
| |
TECHNICAL SPWCIFICATION/DATA SHEET
SPLINE SHAFT DESIGNS |
| Refiner size |
|
GDR-13 |
GDR-17 |
GDR-21 |
GDR-24 |
GDR-26 |
GDR-31 |
| CAPACITY |
TPD |
7-15 |
15-48 |
25-80 |
40-120 |
80-140 |
80-200 |
| CONSISTANCY |
% |
3.5-6.0 |
3.5-6.0 |
3.5-6.0 |
3.5-6.0 |
3.5-6.0 |
3.5-6.0 |
| MOTOR RATING |
HP |
30-60 |
100-150 |
175-300 |
300-475 |
400-525 |
400-675 |
| REFINER SPEED |
RPM |
960 |
960 |
960 |
960 |
720 |
600/720 |
| STOCK INLET PRESSURE |
Kg/Cm2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
| |
| Note: GDR - 13 available in gear coupling designs only. |
| |
| |
| |
| |
| |
| MATERIAL OF CONSTRUCTION |
| REFINER BODY STOCK INLET |
SOLID SINGLE PIECE STAINLESS STEEL-304 CASTED |
| CYLINDER-HOUSING |
| CYLINDER |
| SHAFT HUB |
| STUFFING BOX |
| SHAFT |
SHAFT-SEA 8620(HARDENED-NITRIDE PROCESS+CARBURISED) |
| REFINER DISC |
CA-40 |
|
| |
| |
 |

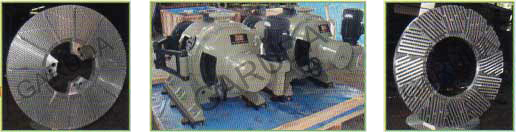

| |
| 3X3 - Bar Pattern |

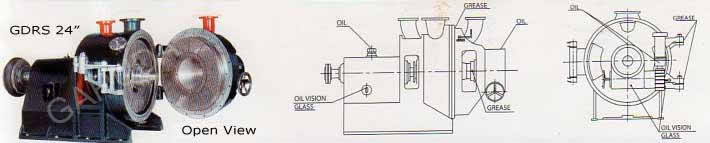

Spline Shaft Auto Loading Designs |
5X5 - Bar Pattern |
|
|
|
| |
| |
 |
| |
| |
